Embry-Riddle's Half-A-Wing A few miles down the road, Embry-Riddle's Daytona Beach campus is busily preparing about 5,000 students for careers in aviation and space. One of those degree programs, Aviation Maintainence Science, has a track including aircraft fabric covering, which also happens to be one of our favorite subjects. When we heard they were looking for a teaching aid to illustrate covering a wing with fabric, we scrounged up half a wing and went to work. Following are some pictures we took along the way: |
 |

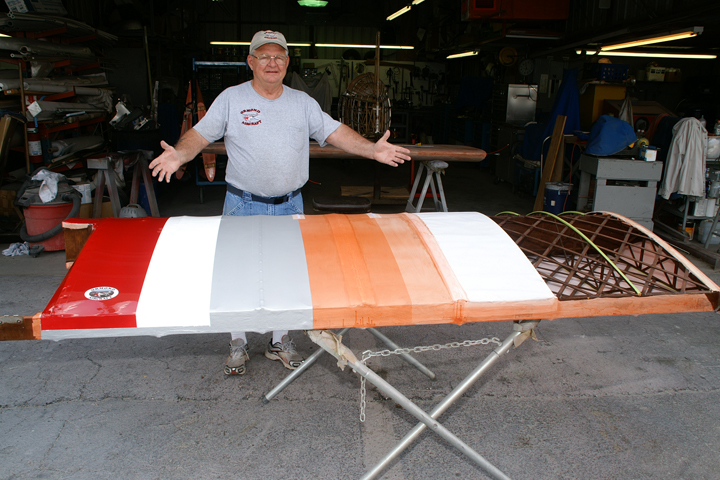

Roscoe with the finished product |
 |
 |
 |

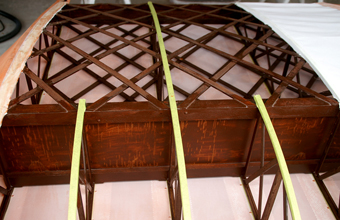

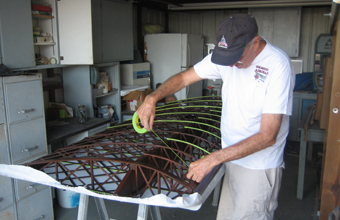

Taping the ribs |
Ribs ready for covering |

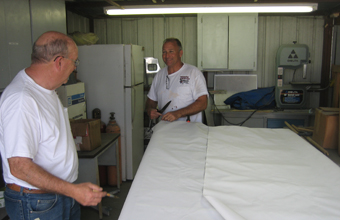

Cutting the fabric |
 |
 |
 |

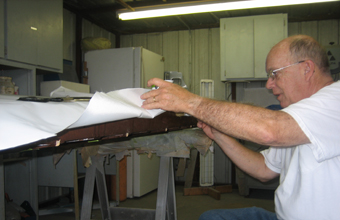

Gluing the edges |

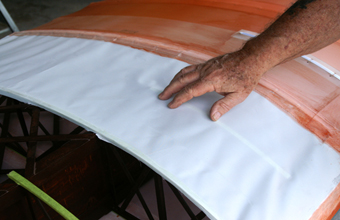

Unshrunk fabric |

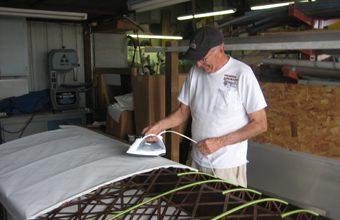

Shrinking the fabric |
 |
 |
 |

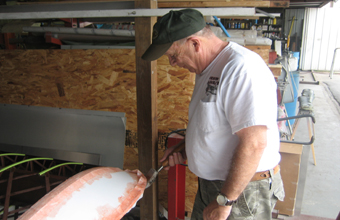

Taping the edges |

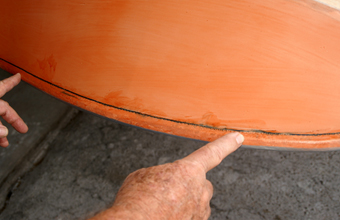

Bias edge tape |

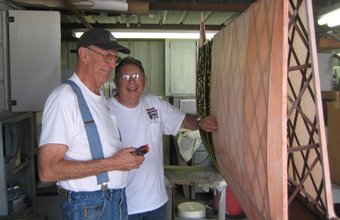

Rib Stitching |
 |
 |
 |

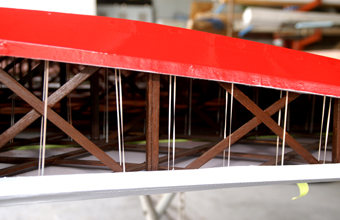

Side view of rib stitches |

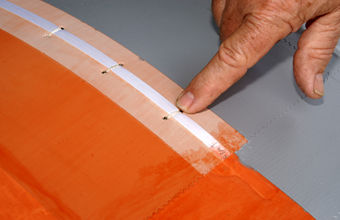

Top view of rib stitches |
One coat of "pink" |
 |
 |
 |

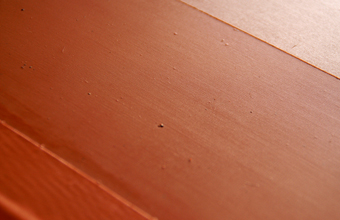

Imperfections must be sanded out |

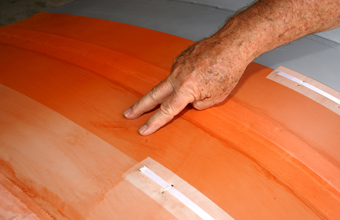

Two coats of "pink" |

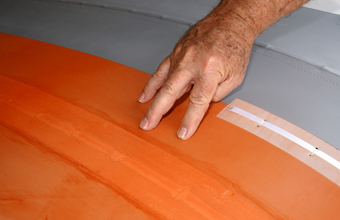

Three coats of "pink" |
 |
 |
 |

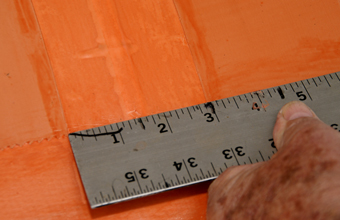

Tape over ribs |

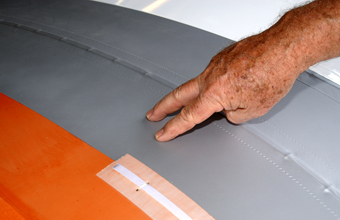

Two coats of silver |

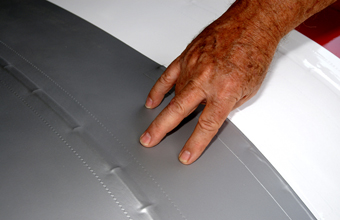

Three coats of silver |
 |
 |
 |

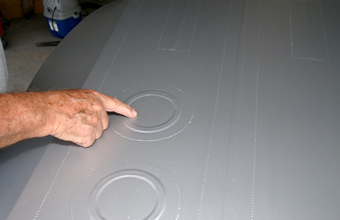

Underwing inspection holes |

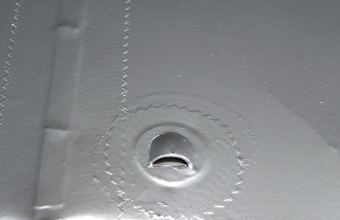

Underwing drain |

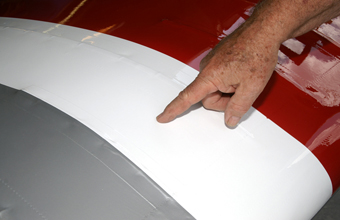

First finish coat |
 |
 |
 |

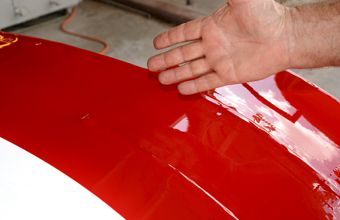

Final finish coat |

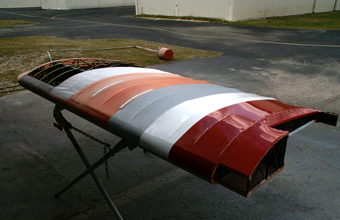

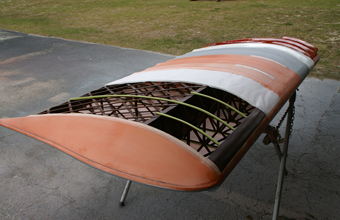

Finished display |
Finished display |
